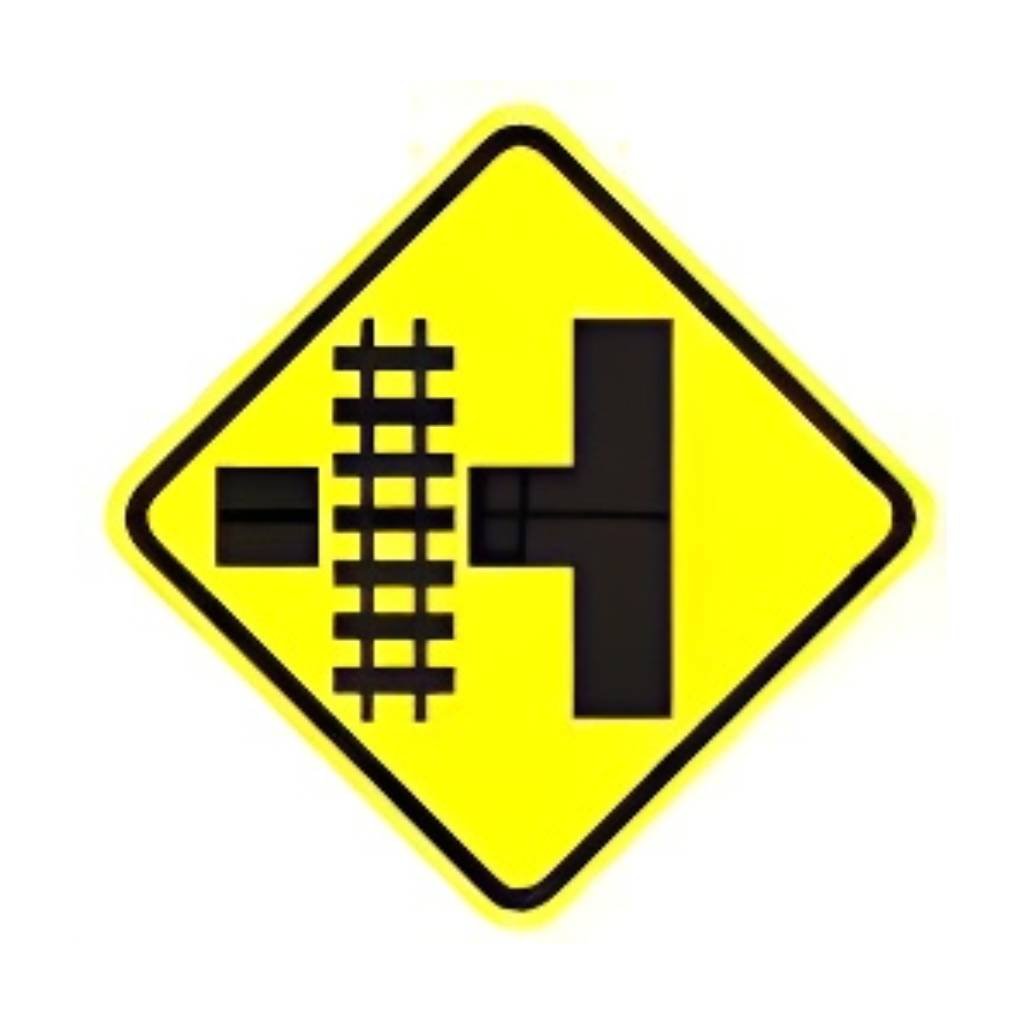

Side Road, Tracks
$24.50
W10-3 Side Road Railroad Crossing symbol. (Standard Reflective on .080 gauge aluminum). Shall be installed on each approach to the intersection to warn drivers they will encounter a railroad crossing if the distance between the parallel road to the tracks is less than 100 feet.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size/Reflectivity |
18-inch Diamond Grade ,24-inch Diamond Grade ,30-inch Diamond Grade ,36-inch Diamond Grade ,18-inch Standard Reflective ,18-inch High Intensity ,24-inch Standard Reflective ,24-inch High Intensity ,30-inch Standard Reflective ,30-inch High Intensity ,36-inch Standard Reflective ,36-inch High Intensity |
Key Features
- 5052-H38 alodized aluminum sign
- 3/8" mounting holes and radius corners
- Reflective sheeting
Applications
Overview
W10-3 Side Road Railroad Crossing symbol. (Standard Reflective on .080 gauge aluminum). Shall be installed on each approach to the intersection to warn drivers they will encounter a railroad crossing if the distance between the parallel road to the tracks is less than 100 feet.
Pre-drilled holes make mounting simple on posts, fences, walls, or poles. Built with reflective sheeting and safety-radius corners, this MUTCD-compliant sign is engineered for long-term traffic control use.
Specification
| Corners | Standard Federal Radius |
|---|---|
| Finish | Reflective |
| Hole Diameter | 3/8" |
| Hole Placement | Top and Bottom Centered |
| Hole Quantity | 2 |
| Legend | Side Road, Tracks |
| Material | .080 Aluminum |
| MUTCD Identifier | W10-3 |
| Shape | Diamond |
| Sheeting Color | Yellow |
Resources
No resources available.
Related Products

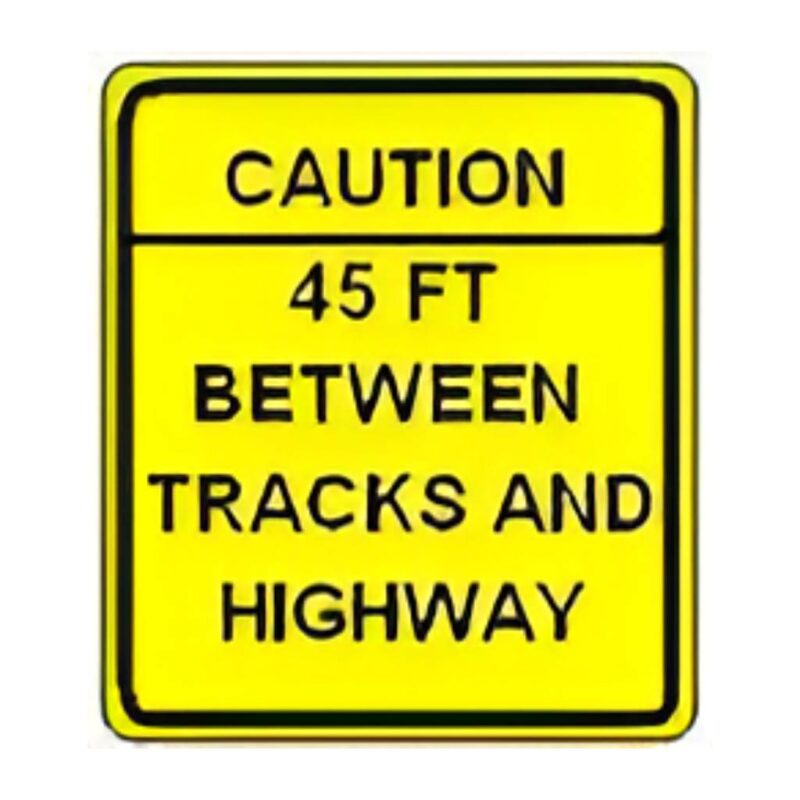

Caution __ FT Between Tracks and Highway
